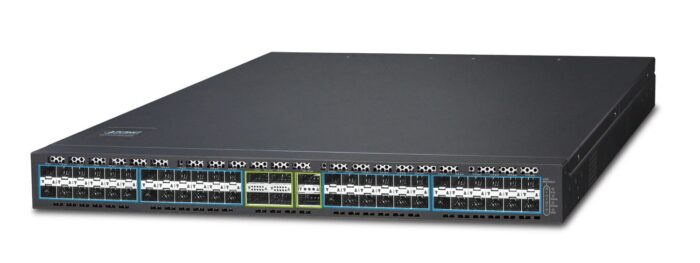

PLANET Layer 3 48-Port 10G SFP+ Managed L3 1U Black

The PLANET Layer 3 48-Port 10G SFP+ Switch is a managed switch operating at the Layer 3 level. It features 48 ports and includes one USB 2.0 port. The switch supports full duplex communication and has a MAC address table capable of storing up to 64,000 entries. It adheres to several networking standards including IEEE 802.1D, 802.1Q, 802.1ab, 802.1p, 802.1s, 802.1w, and 802.1x. The switch operates with a DC input voltage range of 36 to 72 volts. It is designed for rack mounting and has a form factor of 1U.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L3
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more


Traffic classification
Yes
show more


Traffic shaping
Yes
show more


System event log
Yes
show more

Ports & interfaces

SFP+ module slots quantity
48
show more


QSFP+ module slots quantity
2
show more


QSFP28 ports quantity
4
show more


USB 2.0 ports quantity
USB 2.0 ports quantity
1
show more

Network

Networking standards
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3z
show more


10G support
10G support
Yes
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


MAC address auto-learning supported
Yes
show more


Auto-negotiation
Yes
show more


Flow control support
Yes
show more


Spanning tree protocol
Yes
show more


Link aggregation
Yes
show more


VLAN support
VLAN support
Yes
show more

Data transmission

Throughput
1440 Mpps
show more


MAC address table
MAC address table
64000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
9000
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more


Number of fans
Number of fans
4 fan(s)
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


DC input voltage
36 – 72 V
show more


Power consumption (max)
Power consumption (max)
147 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 80 °C
show more


Operating relative humidity (H-H)
10 – 85%
show more


Storage relative humidity (H-H)
5 – 95%
show more


Heat dissipation
Heat dissipation
504.3 BTU/h
show more

Weight & dimensions

Width
Width
442 mm
show more


Depth
Depth
404 mm
show more


Height
Height
44 mm
show more


Weight
Weight
8.8 kg
show more

Certificates

Certification
FCC Part 15 Class A, CE
show more
