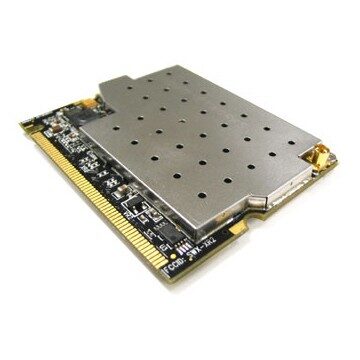

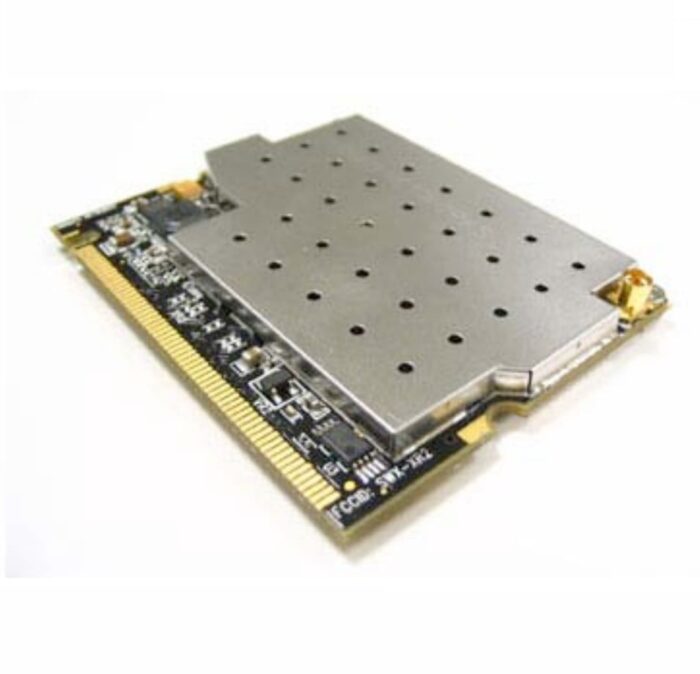

Ubiquiti XR2 – High Efficiency
The Ubiquiti XR2 radio module series is designed based on extensive knowledge and user experience, and it meets the needs of the most demanding clients. As an extension of the highly acclaimed Super Range series, the XR2 stands out for its functionality and reliability.
Reliability
The Ubiquiti XR2 is capable of operating with long wave radio channels, allowing the construction of Wi-Fi base stations. It boasts an output power of 600 mW in the 2.4 GHz band, featuring high sensitivity, an MMCX connector, and a wide temperature range.
Protection
This device is equipped with advanced surge protection and uses an Atheros AR5414 processor. It is compliant with IEEE 802.11b, IEEE 802.11g, and RoHS standards.
Key Features
– Wireless connectivity technology
– Mini PCI Express host interface
– Maximum data transfer speed of 54 Mbit/s
– Compliant with IEEE 802.11b and IEEE 802.11g standards
Manufacturer's Content
For detailed information, refer to the manufacturer's documentation.
| XR2 | |
|---|---|
| Interface | 32-bit mini-PCI type IIIA |
| Operation voltage | 3.3V DC |
| Radio operation | IEEE 802.11b/g, 2.4 GHz |
| Antenna ports | Single MMCX |
| TX channel width | 5, 10, 20, 40 MHz |
| Data rates | 6, 9, 12, 24, 36, 48, 54 Mbps |
| Security | WPA, WPA2, AES-CCM & TKIP Encryption, 802.1x, 64/128/152 bit WEP |
| Ambient operating temperature | -45 to 90° C (-49 to 194° F) |
| RoHS complience | Yes |
| Certifications | FCC, IC |
| XR5 | |
| Interface | 32-bit mini-PCI type IIIA |
| Operation voltage | 3.3V DC |
| Radio operation | IEEE 802.11a, 5 GHz |
| Antenna ports | Single MMCX |
| TX channel width | 5, 10, 20, 40 MHz |
| Data rates | 6, 9, 12, 24, 36, 48, 54 Mbps |
| Security | WPA, WPA2, AES-CCM & TKIP Encryption, 802.1x, 64/128/152 bit WEP |
| Ambient operating temperature | -40 to 80° C (-40 to 176° F) |
| RoHS complience | Yes |
| Certifications | FCC, IC |
