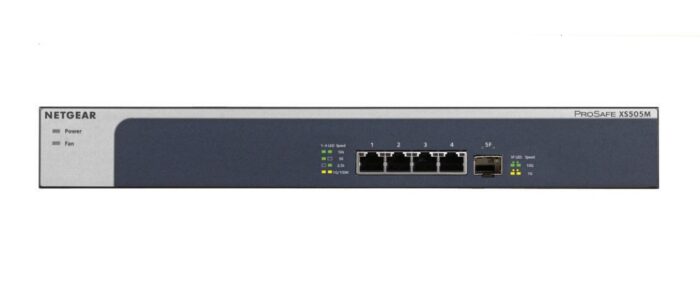

NETGEAR XS505M Unmanaged 10G Ethernet (100/1000/10000) Grey, Silver

The NETGEAR XS505M is an unmanaged switch featuring 4 basic switching RJ-45 Ethernet ports, each offering speeds of 10G Ethernet (100/1000/10000). This model supports full duplex communication and has a MAC address table capable of holding 2000 entries. Its switching capacity reaches up to 100 Gbit/s. The switch adheres to several networking standards, including IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, and IEEE 802.3az. It also includes a DC-in power connector and supports rack mounting.

Management features

Switch type
Switch type
Unmanaged
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
4
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
show more


SFP+ module slots quantity
1
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


10G support
10G support
Yes
show more


Full duplex
Full duplex
Yes
show more


Flow control support
Yes
show more

Data transmission

Switching capacity
Switching capacity
100 Gbit/s
show more


MAC address table
MAC address table
2000 entries
show more


Jumbo frames support
Yes
show more


Jumbo frames
9000
show more


Packet buffer memory
128 MB
show more

Design

Rack mounting
Rack mounting
Yes
show more


Product colour
Product colour
Grey, Silver
show more


LED indicators
Yes
show more


Safety
Safety
CE: CB 60950-1, LVD 60950-1, AUS/NZ: AS/NZS 60950-1, USA: UL 60950-1, SNE VA, BSMI
show more

Performance

Mean time between failures (MTBF)
Mean time between failures (MTBF)
1093237 h
show more

Power

Power source
Power source
AC
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Input current
1.5 A
show more


Power consumption (typical)
Power consumption (typical)
12.25 W
show more


Power consumption (max)
Power consumption (max)
22.5 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 70 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 3000 m
show more


Heat dissipation
Heat dissipation
85.3 BTU/h
show more

Weight & dimensions

Width
Width
328 mm
show more


Depth
Depth
169 mm
show more


Height
Height
43.2 mm
show more


Weight
Weight
1.38 kg
show more

Certificates

Certification
47 CFR FCC, ICES-003:2016 Issue 6, ANSI C63.4:2014, EN 55032:2012+AC2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2015, VCCI V-3/2015.04, V-4/2012.4, CNS 13438
show more

Logistics data

Harmonized System (HS) code
85176990
show more
