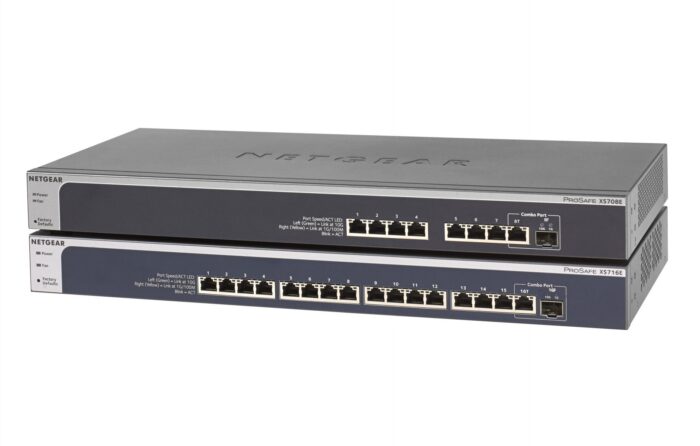

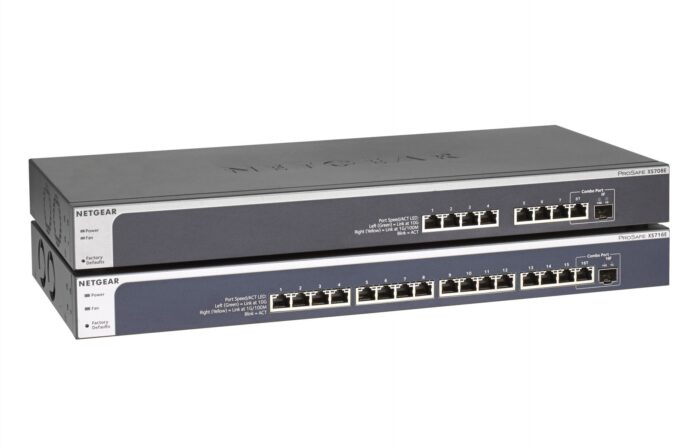

NETGEAR 16-Port 10G Ethernet Plus Switch XS716E

The NETGEAR 16-Port 10G Ethernet Plus Switch (XS716E) is a managed switch designed for efficient network management and performance. It operates on Layer 2 and offers 16 RJ-45 Ethernet ports capable of 10G Ethernet speeds, supporting 100, 1000, and 10000 Mbps data rates. The switch includes a console port in the form of an RJ-45 connection and supports full duplex communication.

It features a MAC address table with the capacity for 16,000 entries and boasts a substantial switching capacity of 320 Gbit/s. The switch complies with a range of networking standards, including IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, and IEEE 802.3aq. For power, it is equipped with a DC-in jack connector.

Additionally, the switch is designed for rack mounting with a compact form factor that fits into a 1U rack space.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
16
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
show more


SFP+ module slots quantity
1
show more


Console port
RJ-45
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


10G support
10G support
Yes
show more


Port mirroring
Yes
show more


Full duplex
Full duplex
Yes
show more


Broadcast storm control
Yes
show more


Rate limiting
Yes
show more


Link aggregation
Yes
show more


Flow control support
Yes
show more


VLAN support
VLAN support
Yes
show more


Virtual LAN features
Port-based VLAN
show more


Number of VLANs
128
show more

Data transmission

Switching capacity
Switching capacity
320 Gbit/s
show more


Throughput
238.1 Mpps
show more


MAC address table
MAC address table
16000 entries
show more


Latency (10-100 Mbps)
7.14 µs
show more


Latency (1 Gbps)
2.68 µs
show more


Latency (10 Gbps)
3.43 µs
show more


Jumbo frames support
Yes
show more


Jumbo frames
9000
show more


Packet buffer memory
2 MB
show more

Security

DHCP features
DHCP client
show more


IGMP snooping
Yes
show more

Multicast features

Multicast support
Yes
show more


Number of multicast groups filtered
128
show more

Design

Rack mounting
Rack mounting
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Black
show more


Reset button
Yes
show more


LED indicators
Yes
show more


Number of fans
Number of fans
2 fan(s)
show more


Safety
Safety
UL/cUL UL 60950-1/CAN/CSA C22.2 No. 60960-1-07, EN 60950-1: 2006, A11:2009, A1:2010, A12:2011, A2:2013, IEC 60950-1:2005, A1:2009, A2:2013, AN/NZS 60950.1:2011/Amdt 1: 2012
show more

Performance

Noise level
Noise level
33.9 dB
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
348257 h
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Input current
2.5 A
show more


Power consumption (typical)
Power consumption (typical)
20.9 W
show more


Power consumption (max)
Power consumption (max)
62.7 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 70 °C
show more


Operating relative humidity (H-H)
0 – 90%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 3000 m
show more


Heat dissipation
Heat dissipation
21440 BTU/h
show more

Weight & dimensions

Width
Width
440 mm
show more


Depth
Depth
204 mm
show more


Height
Height
43 mm
show more


Weight
Weight
3.2 kg
show more

Certificates

Certification
CE, 47 CFR FCC, SubpartB, ANSI C63.4: 2014, EN 55022:2010 + AC:2011, EN 55024:2010, AS/NZS CISPR 22:2009 + A1:2010, V-3/2015.04, V-4/2012.04, ICES-003:2012 Issue 5, EAC, KC, CCC, CNS 13438, CNS 13438
show more

Logistics data

Country of origin
Country of origin
China
show more


Harmonized System (HS) code
85176990
show more
