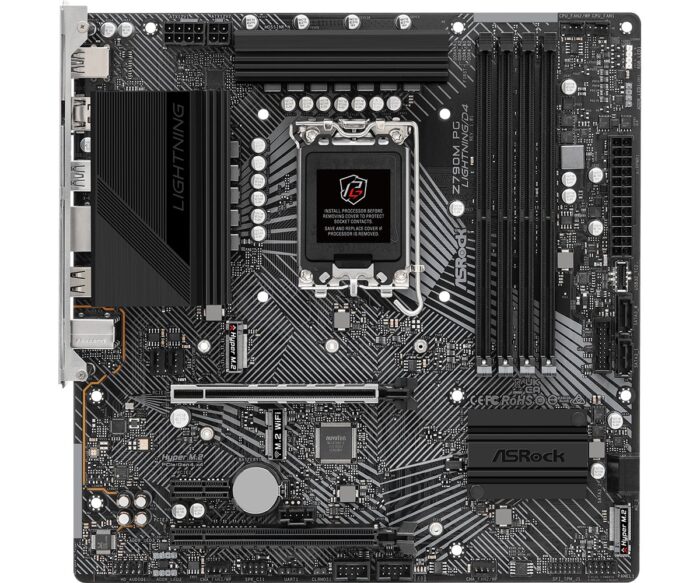

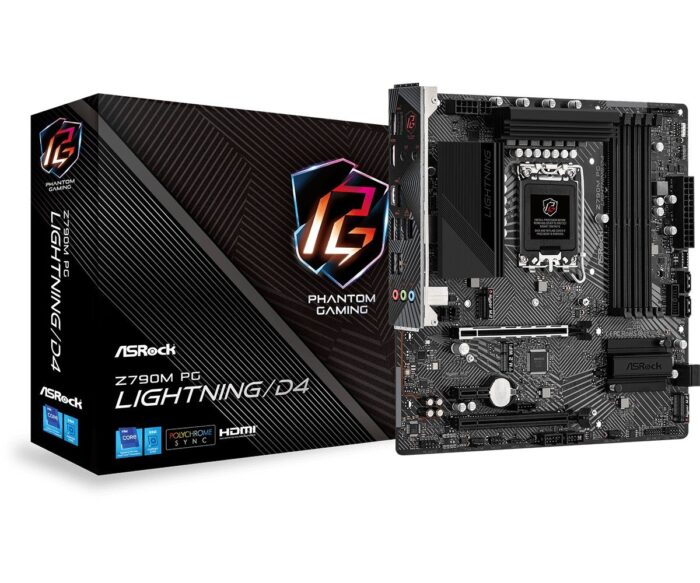

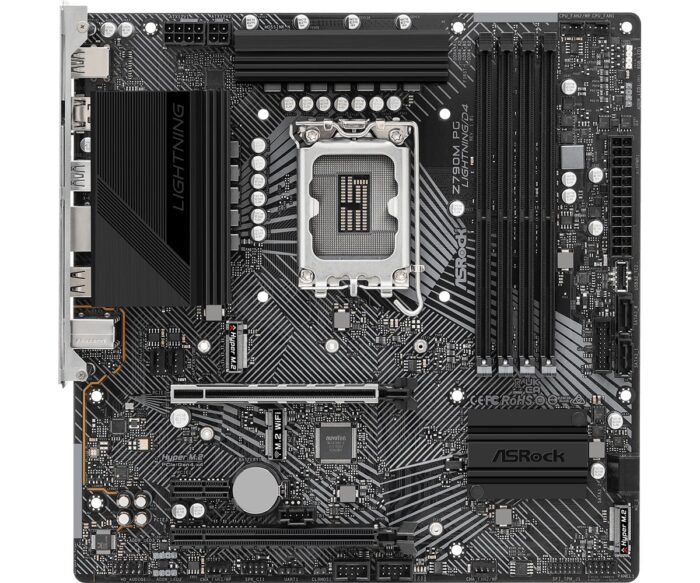

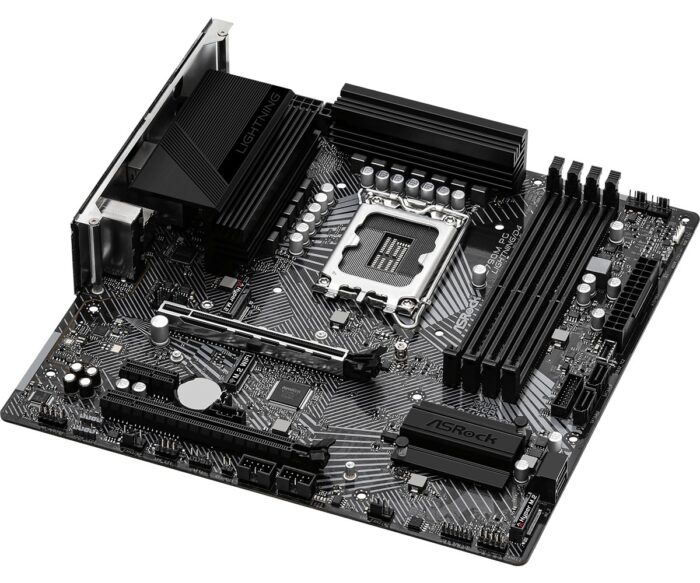

ASRock Z790M PG Lightning/D4 Motherboard

The Asrock Z790M PG Lightning/D4 is designed for use with Intel processors and features an LGA 1700 socket. It is compatible with processor series such as Intel Core i5, i7, and i9. This motherboard supports DDR4-SDRAM memory with a maximum internal memory capacity of 128 GB and utilizes DIMM slots. Storage drive interfaces available are M.2 and SATA III. It includes a Gigabit Ethernet interface and is equipped with an Intel I219-V LAN controller. The motherboard is intended for use in PCs and follows the micro ATX form factor, belonging to the Intel chipset family.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
LGA 1700
show more


Compatible processor series
Compatible processor series
Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
show more


Maximum number of SMP processors
1
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
4
show more


Memory slots type
Memory slots type
DIMM
show more


ECC сompatibility
Non-ECC
show more


Maximum internal memory
Maximum internal memory
128 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive interfaces
M.2, SATA III
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


Front panel audio connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


Thunderbolt headers
1
show more


TPM connector
Yes
show more


RGB LED pin header
Yes
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


Line-in
Yes
show more


Headphone outputs
Headphone outputs
1
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


LAN controller
Intel® I219-V
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
Intel Z790
show more


Audio chip
Realtek ALC897
show more


Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
micro ATX
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 x64, Windows 11 x64
show more

Expansion slots

PCI Express x1 (Gen 3.x) slots
1
show more


PCI Express x16 (Gen 4.x) slots
1
show more


PCI Express x16 (Gen 3.x) slots
PCI Express x16 (Gen 3.x) slots
1
show more


Number of M.2 (M) slots
1
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


BIOS memory size
128 Mbit
show more

Weight & dimensions

Width
Width
244 mm
show more


Depth
Depth
244 mm
show more
