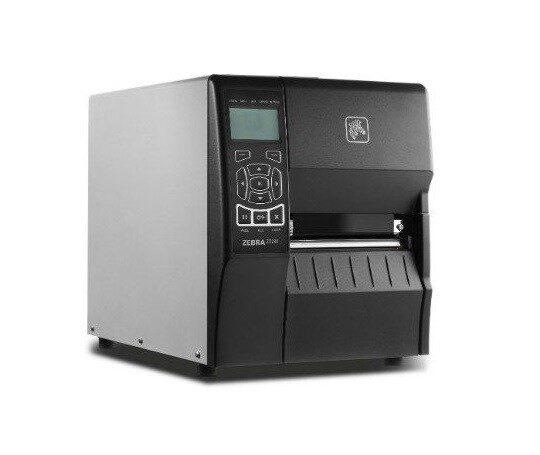

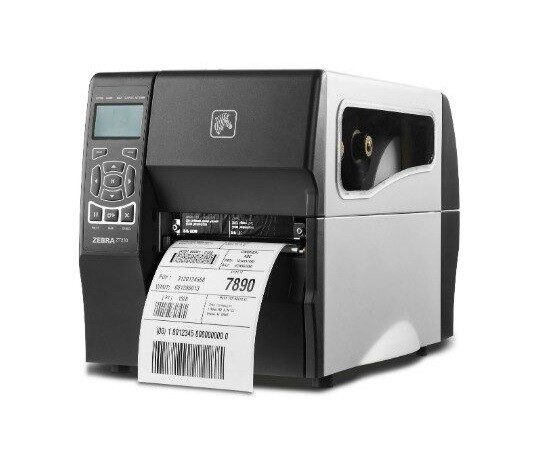

Zebra TT Printer ZT230, 203 dpi, Chinese Cord, SimSun Font, Serial, USB, Int 10/100

The Zebra ZT230 printer features thermal transfer print technology and is classified as a POS printer. It offers a maximum print resolution of 203 x 203 DPI. The printer can accommodate printing media with a thickness ranging from 76 to 250 micrometers, and it supports a maximum roll diameter of 20.3 cm. The paper width it supports ranges from 19.4 to 114 mm. In terms of connectivity, the printer utilizes wired technology and includes a serial interface of type RS-232. It supports Ethernet LAN data rates of 10 and 100 Mbit/s. The printer is equipped with built-in barcode capabilities, supporting formats such as AZTECCODE, Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, and Data Matrix. It has an internal memory capacity of 128 MB and supports pagin description languages like EPL and ZPL II.

Printing

Maximum resolution
Maximum resolution
203 x 203 DPI
show more


Number of printable dots
8 dot
show more


Print speed
Print speed
152 mm/sec
show more


Print technology
Print technology
Thermal transfer
show more


Type
Type
POS printer
show more

Paper handling

Maximum media length
3.99 m
show more


Maximum printing width
Maximum printing width
11.4 cm
show more


Supported paper width
19.4 – 114 mm
show more


Maximum roll diameter
Maximum roll diameter
20.3 cm
show more


Printing media thickness
Printing media thickness
76 – 250 µm
show more

Ports & interfaces

USB port
USB port
Yes
show more


USB 2.0 ports quantity
USB 2.0 ports quantity
1
show more


Serial interface
Yes
show more


Serial interface type
RS-232
show more


Connectivity technology
Connectivity technology
Wired
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100 Mbit/s
show more

Features

Built-in barcodes
AZTECCODE, Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, Logmars, MaxiCode, PDF417, Planet, PLESSEY, POSTNET, QR Code, TLC39, UPC-A, UPC-E
show more


Page description languages
EPL, ZPL II
show more


Internal memory
Internal memory
128 MB
show more


Storage media
Storage media
Flash
show more


Flash memory
128 MB
show more

Design

Product colour
Product colour
Black
show more


Built-in display
Built-in display
Yes
show more

Power

Power source type
Power source type
AC
show more

Operational conditions

Storage relative humidity (H-H)
5 – 85%
show more


Operating relative humidity (H-H)
20 – 85%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 60 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more

Weight & dimensions

Width
Width
242 mm
show more


Depth
Depth
432 mm
show more


Height
Height
277 mm
show more


Weight
Weight
9.1 kg
show more
